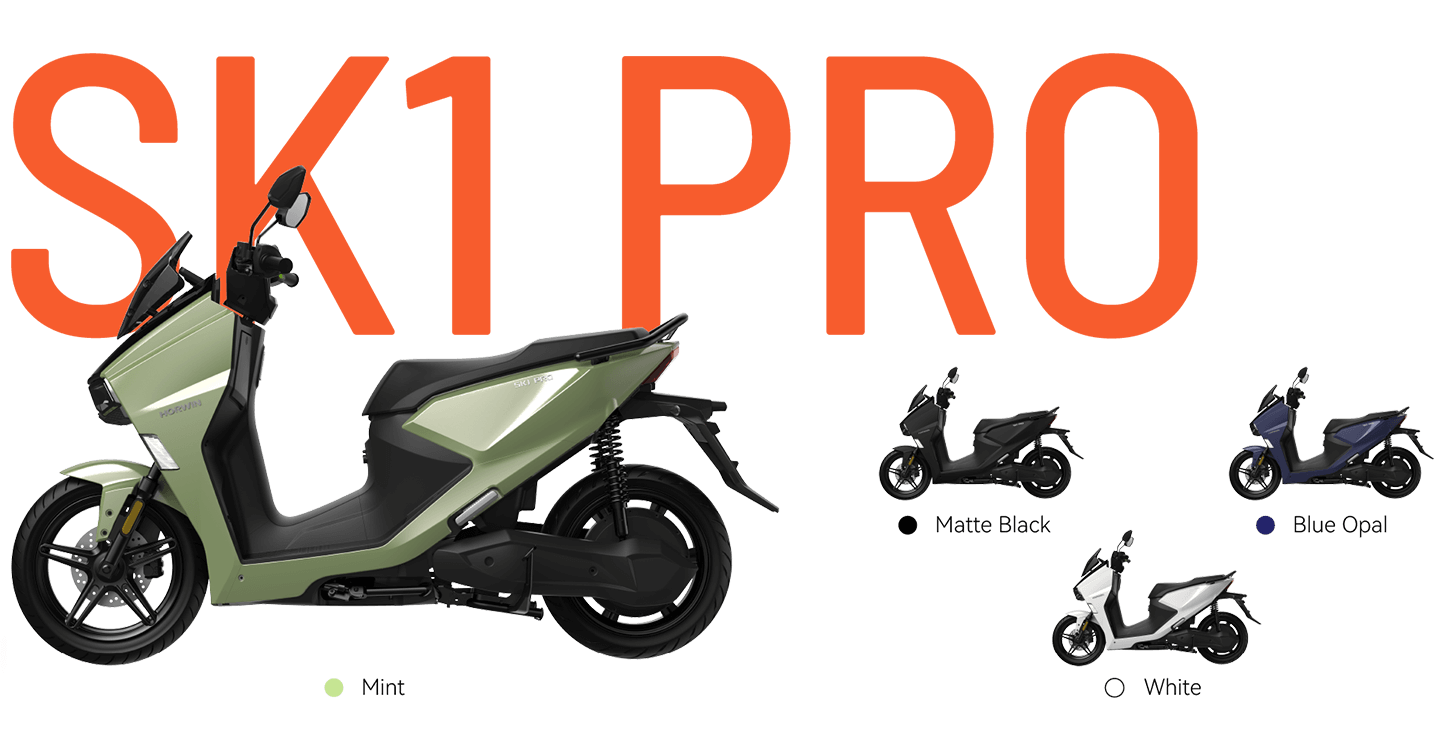

imgi_15_SK1PRO

45km/h

Top Speed

80 km

Range

3.0 KW

Peak Power

Customized Decals

Color Customization

Customization of vehicle brand logo

Front Rack

Left and right backpack racks

Rear tailstock

* Complete vehicle renovation design, intelligent system linkage deployment, customized complete solution (with minimum order quantity)

DOUBLE THE COMFORT

Optimized speed profiles for different power levels ensure a smoother ride, tailored to your needs.

45km/h

Top Speed

3.0 KW

Peak Power

106 N·m

Maximum Torque

13°

Maximum Climbing Angle *

imgi_16_SK1pro
imgi_17_Frame

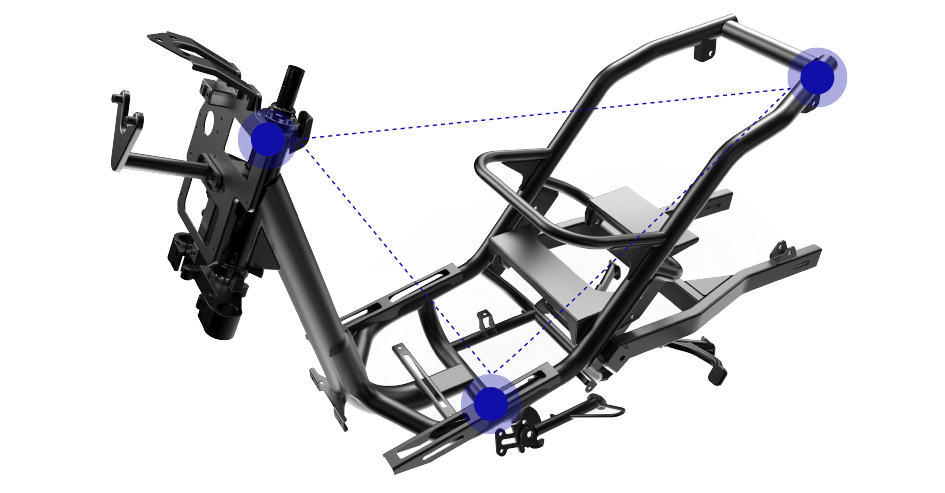

GOLDEN TRIANGLE FRAME

500

Hours

360

Kg

2

Million

imgi_18_WechatIMG1206

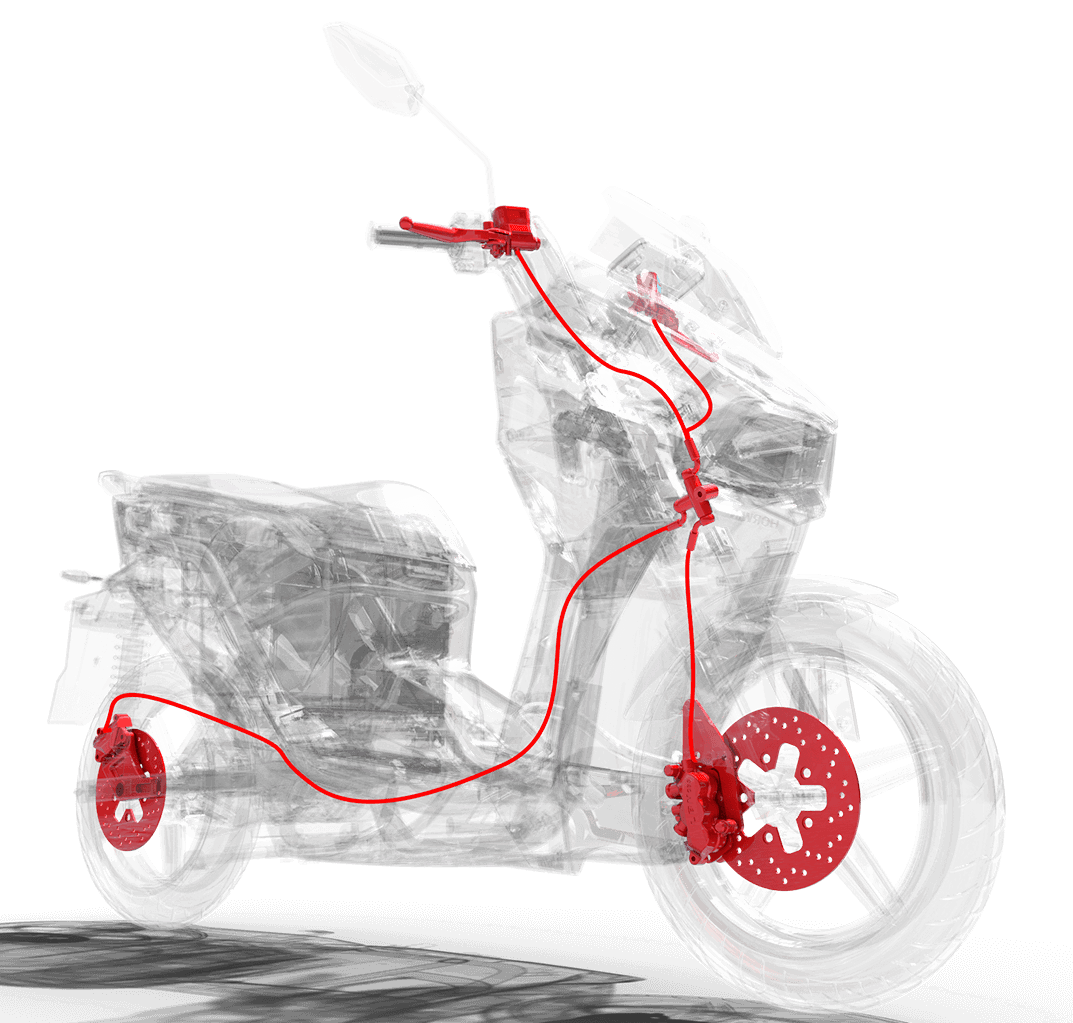

EABS + ETCS

Reliable electronically assisted braking and control for enhanced safety and efficiency.

FRONT-END STORAGE BOX

Capacty or 20 iphones

Large capacity
Concealed
Large opening

MOTORCYCLE HANDLEBARS

Handlebar buttons

imgi_21_SK1pro01

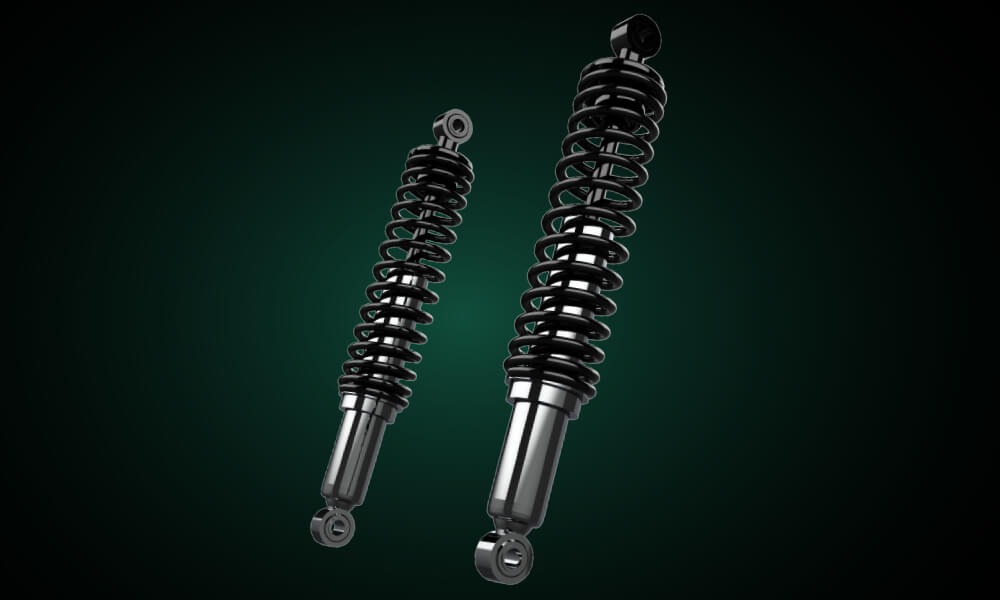

Shock absorber

Dual hydraulic

imgi_22_SK1pro02

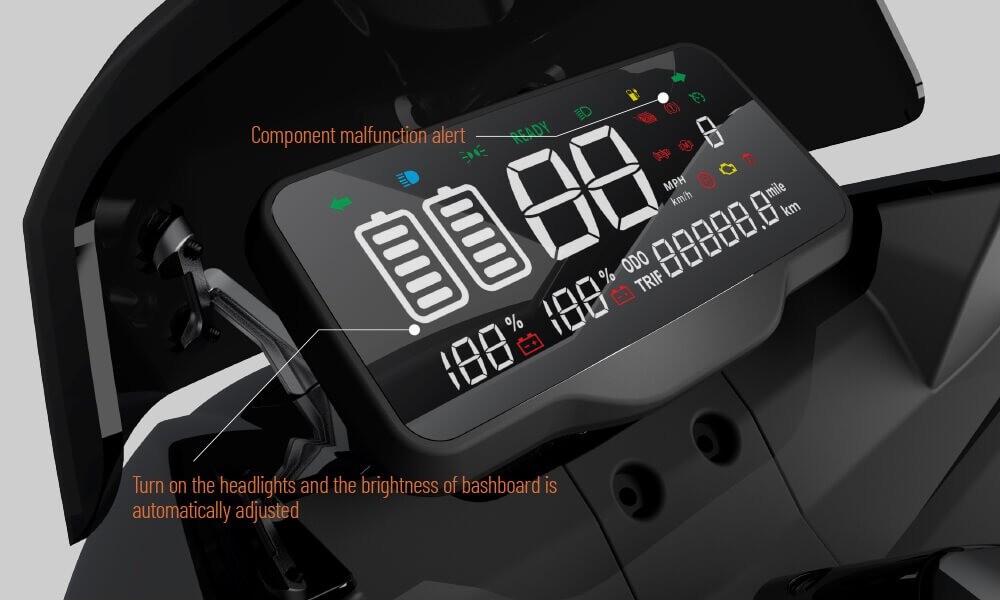

LED Dashboard

5.5 Inch

LCD Dashboard

160 Degrees

Viewing angle

>1 km/h

Speedometer

imgi_23_SK1pro03

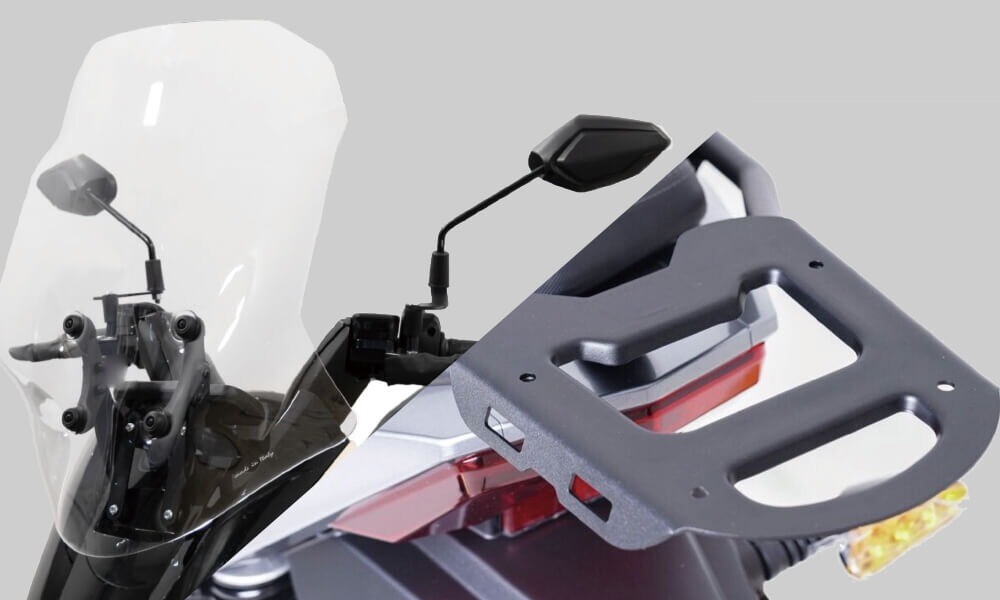

Expandability

Optional windscreen and tailgate bracket for added versatility and convenience.

Product Specification

PERFORMANCE
Top Speed 45km/h
Range 80km(with 45 kph)
DIMENSION
L*W*H 1993mm*742mm*1136mm
Saddle Height 790mm
Ground Clearance 155mm
Wheelbase 1360mm
Weight(G.W) 85kg(without battery)
POWERTRAIN

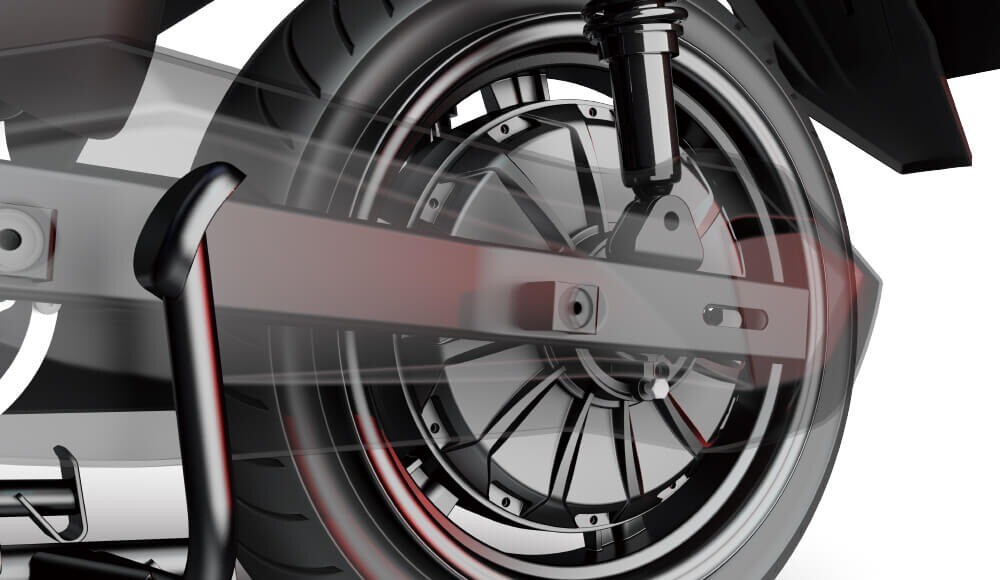

Motor Hub Motor
Controller FOC
Max Power 3.0kW
Continue Rated Power 2.0kW
Battery 72V,36Ah（optional with second battery）
Charging Time(8A) ≈4.5h
Ride Mode 1/2/3/R
CHASSIS
Brake System Disc Brake
Wheels Tire 100/80 R14
120/70 R14
Rim Aluminium Alloy
SMART&FEATURES
Safety System GPS+Transaction Alarm
APP & IOT ●
All-around LED Lights ●
