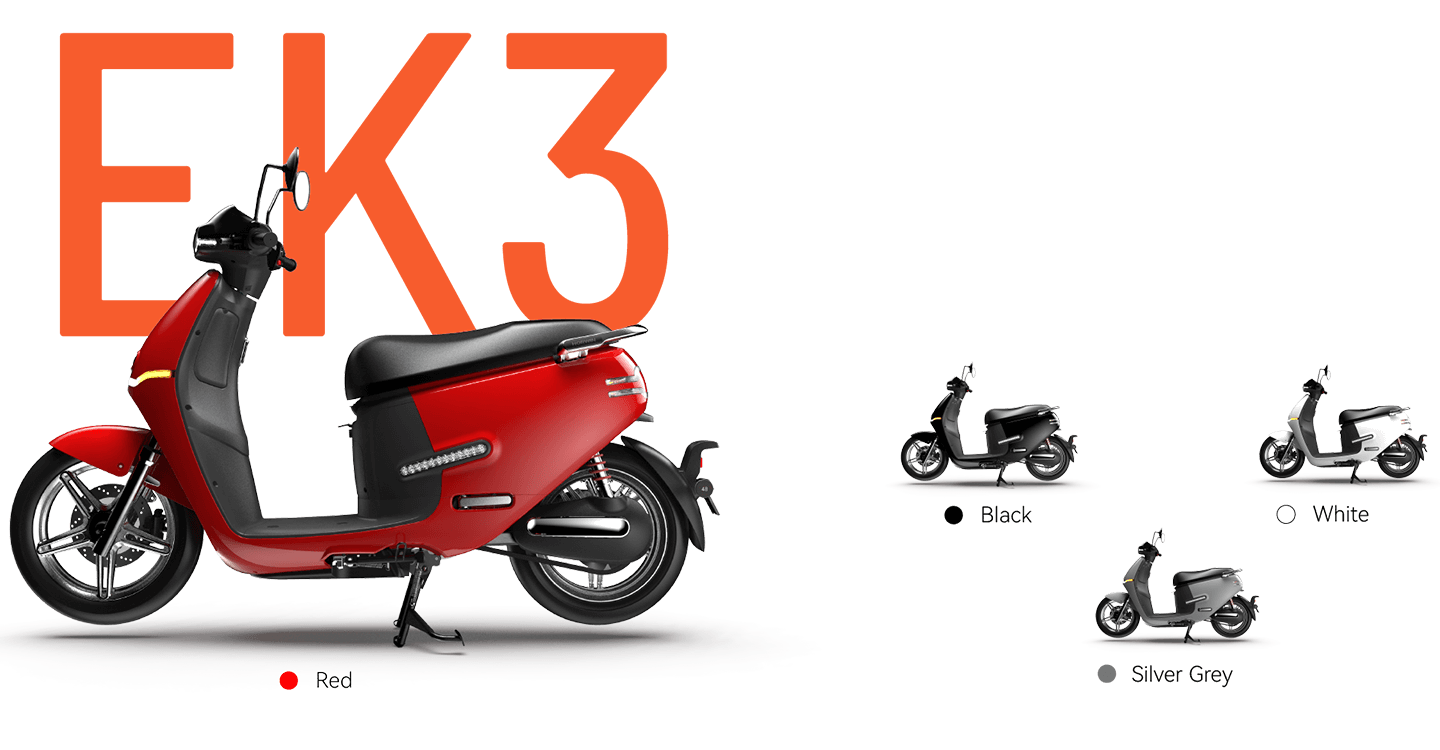

imgi_15_EK3_banner

95km/h

Top Speed

150 km

Range

*2 Batteries

6.3 KW

Peak Power

Customized Decals

Color Customization

Customization of vehicle brand logo

Front Rack

Left and right backpack racks

Rear tailstock

* Complete vehicle renovation design, intelligent system linkage deployment, customized complete solution (with minimum order quantity)

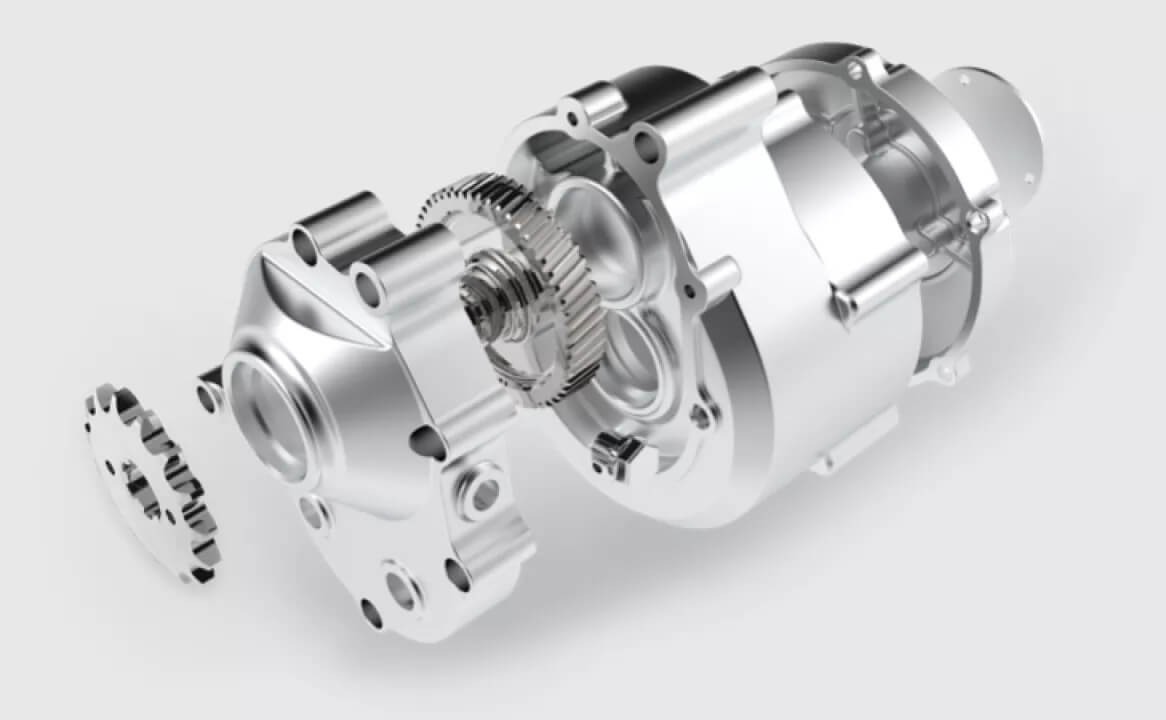

  • The centre motor generates 6.3 kW of power at a top speed of 90 km/h. Acceleration from 0 to 60 km/h in 6 seconds.
    Highly efficient & economical
    The centre motor generates 6.3 kW of power at a top speed of 90 km/h. Acceleration from 0 to 60 km/h in 6 seconds.

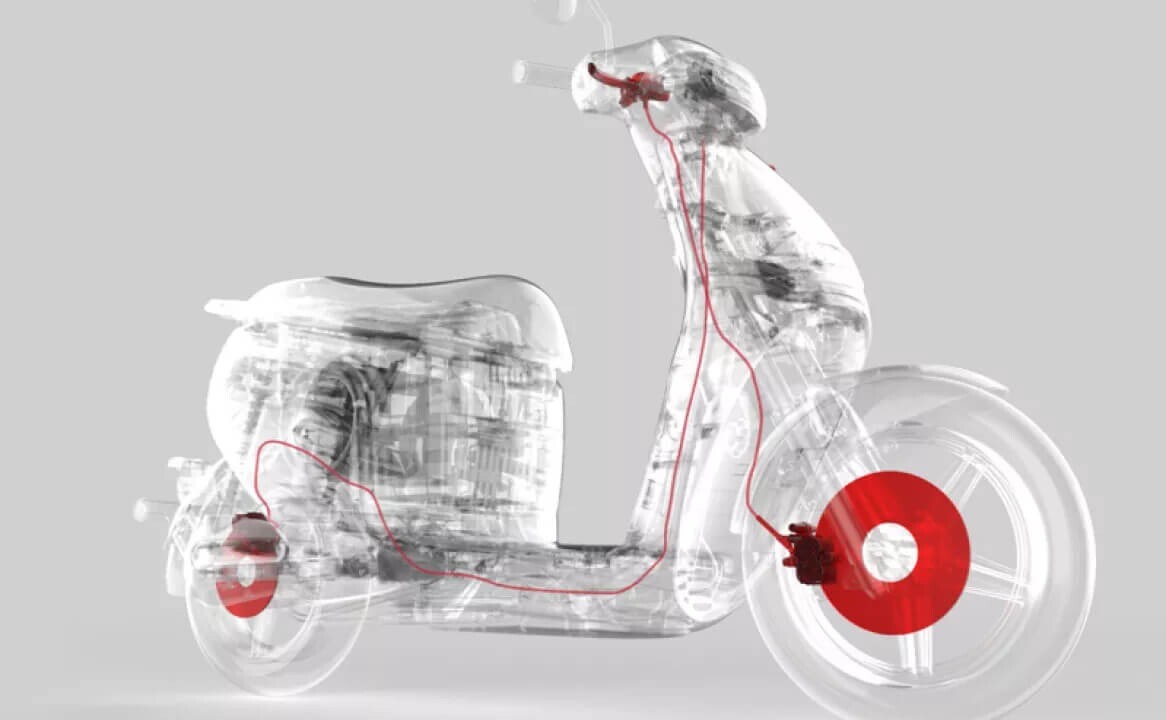

  • The front and rear disc brakes shorten the braking distance. The CBS braking system ensures safe braking at high speed.
    CBS brake system
    The front and rear disc brakes shorten the braking distance. The CBS braking system ensures safe braking at high speed.
imgi_18_EK3_03

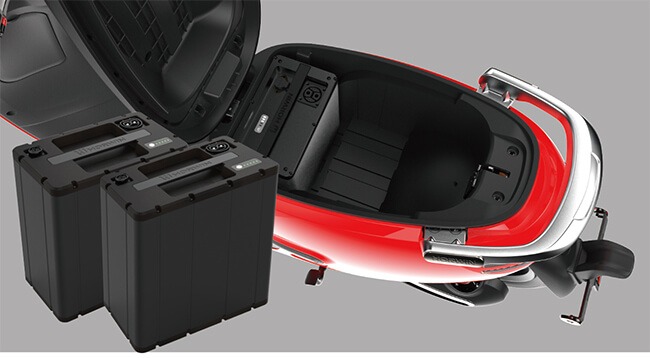

BATTERY WITH ITSOWN MANAGEMENT

The EK3 scooter can be equipped with two lithium-ion batteries that are easily removable.The SOc monitoring system and the modern battery management system can prevent malfunctions.

Among other things, they provide protection against over-charging, discharging, over-voltage, short circuitand monitor the temperature of the batteries. The battery life is over 1000 cycles. The standard chargingcurrent is 10A. The charging time of one battery is 4 hours.

An intelligent charger is used for this.

36Ah

BATTERY &

TWO BATTERIES

150 KM

MAX. RANGE

(45 KM/H)

4 H

(ONE BATTERY)

CHARGING TIME

SAFE RIDING

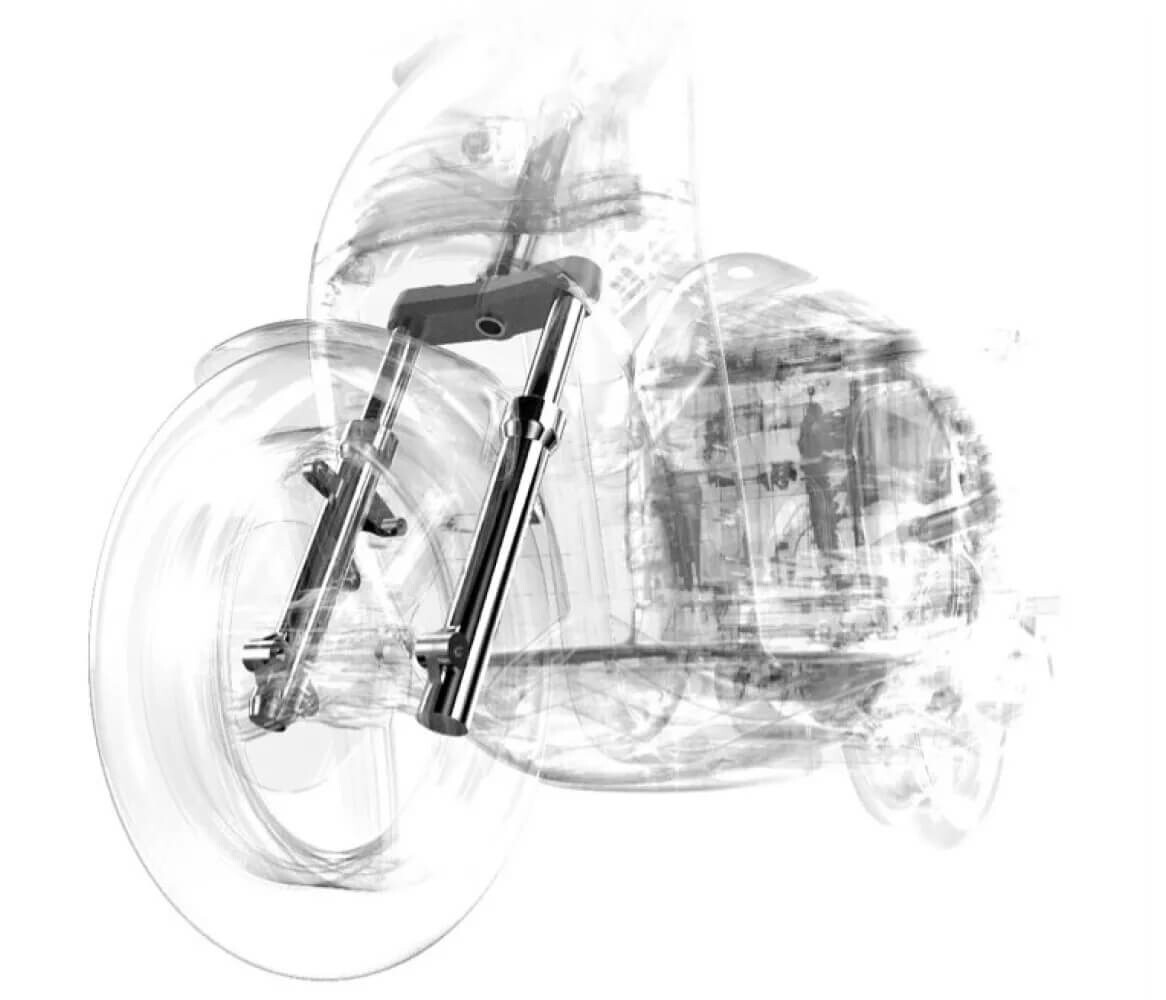

Dual hydraulic shock absorbers front and rear provide the driver with an excellent and safe drivingexperience, regardless of road conditions.

imgi_19_EK3_05

Product Specification

PERFORMANCE
Top Speed 95km/h
Range 150km(with 2 batteries)
DIMENSION
L*W*H 1900mm*690mm*1130mm
Saddle Height 780mm
Ground Clearance 125mm
Wheelbase 1310mm
Weight(G.W) 103kg(without battery)
Max.permissible Total Weight 291KG
POWERTRAIN
Motor Mid-motor
Controller FOC
Max Power 6.3kW
Continue Rated Power 4.0kW
Battery 72V,36Ah
Charging Time(8A) ≈4.5h
Ride Mode 1/2/3/R
CHASSIS
Brake System CBS+disc Brakes
Wheels Tire 100/80-14
110/70-13
Rim Aluminium Alloy
SMART&FEATURES
Safety System GPS+Transaction Alarm
Touch-start Display ●
USB 5V/1A
Keyless Go ●
All-around LED Lights ●
