95km/h

Top Speed

150 km

Range

*2 Batteries

6.3 KW

Peak Power

40 KG

Maximum Load

Customized Decals

Color Customization

Customization of vehicle brand logo

Front Rack

Left and right backpack racks

Rear tailstock

* Complete vehicle renovation design, intelligent system linkage deployment, customized complete solution (with minimum order quantity)

imgi_17_Ek21

HIGHLY EFFICIENT & ECONOMICAL

The centre motor generates 6.2 kW of power at a top speed of 95 km/h. Acceleration from 0 to 60 km/h in 6 seconds.

imgi_18_battery7236

IN DOUBLE PACK

With an optional second battery, the range can be up to 161 km.

Maximum Load

The luggage carrier is reinforced, rustproof and can carry a load of up to 40 kg. This offers the possibility to mount rear boxes with a maximum capacity of 200 litres.

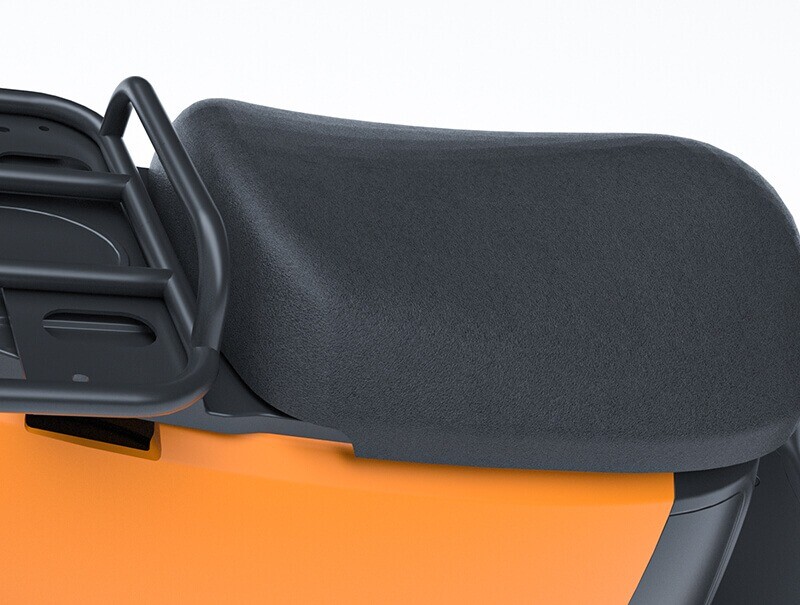

  • The large and soft seat ensures fatigue-free and comfortable riding on longer journeys.
    Big seat cushion
    The large and soft seat ensures fatigue-free and comfortable riding on longer journeys.

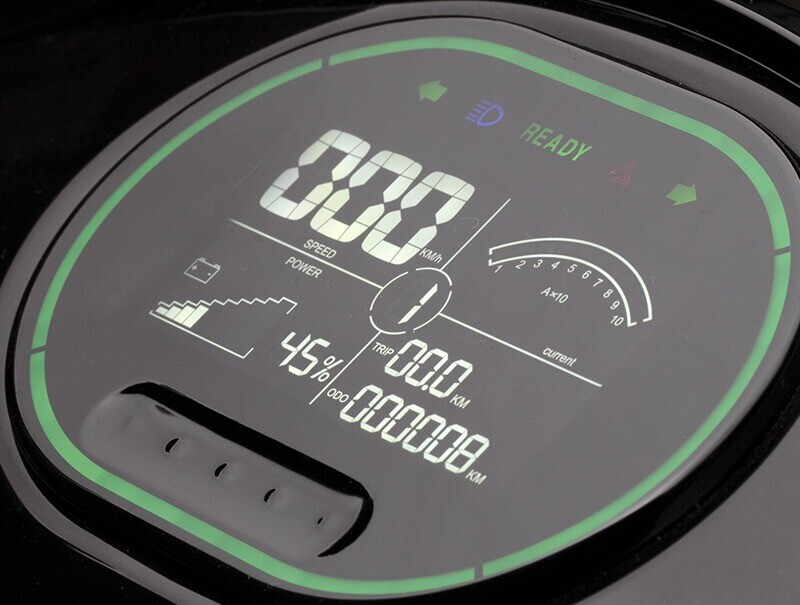

  • The EK3DS can be started with a swipe of the finger on the display. The display also shows all the necessary information that is importantduring the journey.
    Intelligent display
    The EK3DS can be started with a swipe of the finger on the display. The display also shows all the necessary information that is importantduring the journey.

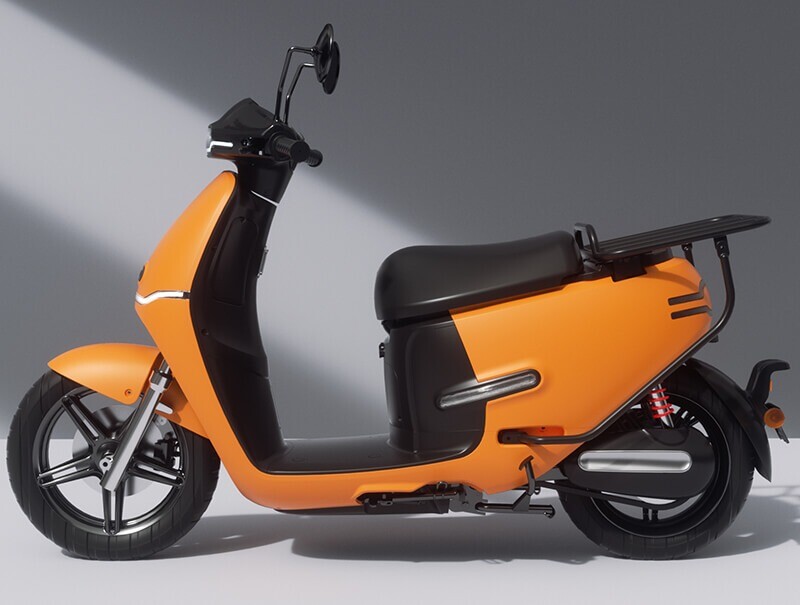

  • The large foot board and wide seat are ergonomically designed. Upper body and legs are relaxed. This means that the EK3DS offers a more comfortable riding experience.
    Ingenious space concept
    The large foot board and wide seat are ergonomically designed. Upper body and legs are relaxed. This means that the EK3DS offers a more comfortable riding experience.

Product Specification


PERFORMANCE EK1 DS EK3 DS
Top Speed 45km/h 95km/h
Range 166km（with 2 batteries) 150km（with 2 batteries)
DIMENSION
L*W*H 1900mm*690mm *1130mm 1900mm*690mm *1130mm
Saddle Height 780mm 780mm
Ground Clearance 125mm 125mm
Wheelbase 1310mm 1310mm
Weight(G.W) 92kg（without battery） 103kg（without battery）
POWERTRAIN
Motor Hub Motor Mid Motor
Controller FOC FOC
Max Power 3.0kW 6.3kW
Continue Rated Power 2.0kW 4.0kW
Battery 72V，36Ah（optional with second battery） 72V，36Ah*2
Charging Time（8A） ≈4.5h ≈4.5h*2
Ride Mode 1/2/3/R 1/2/3/R
CHASSIS
Brake System Disc Brake CBS+disc Brakes
Wheels Tire 100/80 R14 Tire 100/80 R14
110/70 R13 110/70 R13
Rim Aluminium Alloy Rim Aluminium Alloy
SMART&FEATURES
Safety System GPS+Transaction Alarm GPS+Transaction Alarm
Touch-start Display ● ●
All-around LED Lights ● ●
Keyless Go ○ ●
